96 elements 12 inch LED Monitor Laptop Ultrasound Scanner

Name: 96 elements 12 inch LED Monitor Laptop Ultrasound Scanner
Brand: Medbes
Price: 1760 USD

Wholesale 96 elements 12 inch LED Monitor Laptop Ultrasound Scanner from china suppliers

Brand Name : Medbes

Model Number : M-B318

Certification : CE,ISO

Place of Origin : China

MOQ : 1pc

Price : 1760 usd

Payment Terms : Western Union, T/T, MoneyGram, L/C

Supply Ability : 666pcs

Delivery Time : 7 days

Packaging Details : standard package

Elements : 96 elements

Monitor : 12 inch LED Monitor

Element : 96

Porbe onnector : 2

USB Ports : 2

Language system : English

Grey Levels : 256

Body mark : 57

Frequency : 2-12 Mhz

Electronic focus : 4

lV CASE : YES

Contact Now

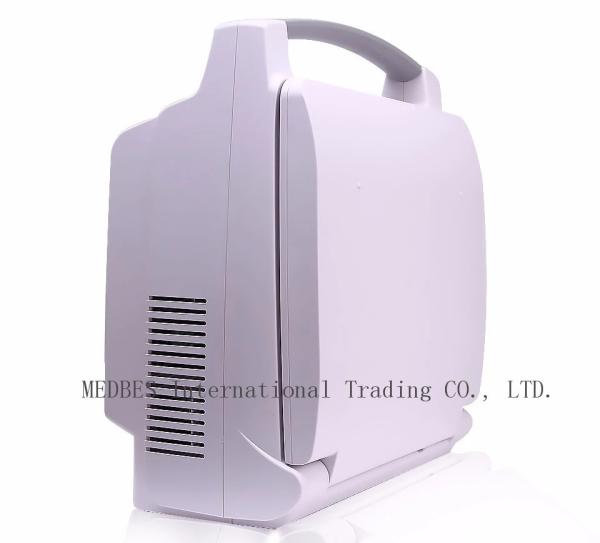

Portable ultrasound scanner (M-B318):

12 inch monitor, high definition image; 2 probe connectors, convenient to transfer the probe; 96 element.
96 elements 12 inch LED Monitor Laptop Ultrasound Scanner

This ultrasound is convex, linear ultrasound scanning diagnostic system with high resolution.
It applies micro-computer control and digital scan converter (DSC), digital beam-forming(DBF),
real time dynamic aperture (RDA),real time dynamic receiving apodization, real time dynamic receiving focusing(DRF),
digital frequency scan (DFS),8 segments digital TGC, frame correlation technologies to endue its image with clarity, stability and high resolution.

Specifications:
Display depth (mm): 240 (max),16 levels adjustable.
Monitor size:12 inch.
Display mode: B,B+B,B+M,M,4B.
Image gray scale:256 level.
Cine loop: 809 frame (Max).
Image storage: 32 frames.
Scan angle: Adjustable.
Scan depth: 40mm-240mm.
Acoustic power: 2 steps.
Dynamic range: 100dB-130dB.
Image flip: Up/down, left/right, black/white.
Focus position: Adjustable.
Focal space: 5 level.
Measurement: Distance, circumference, area, volume, heart rate, GA, FW, EDD.
Notation: Date, time, name. sex, age, doctor, hospital name. Full screen words edit.
Output report: 2 type.
Posture mark: ≥40.
Video output: PAL-D, VGA.

Standard Configuration:	Optional:
·Scanner Body: 1pc	·5.0MHz Micro-convex Probe
·3.5Mhz Convex Probe: 1pc	·6.5MHz Trans-vaginal Probe
·Charger with a Set of wires: 1set	·7.5MHz Linear Probe
·Bottle of USG gel: 1pc	·Video Printer
·User Manual: 1pc	·Trolley

96 elements 12 inch LED Monitor Laptop Ultrasound Scanner
